Finger Jet Nozzle

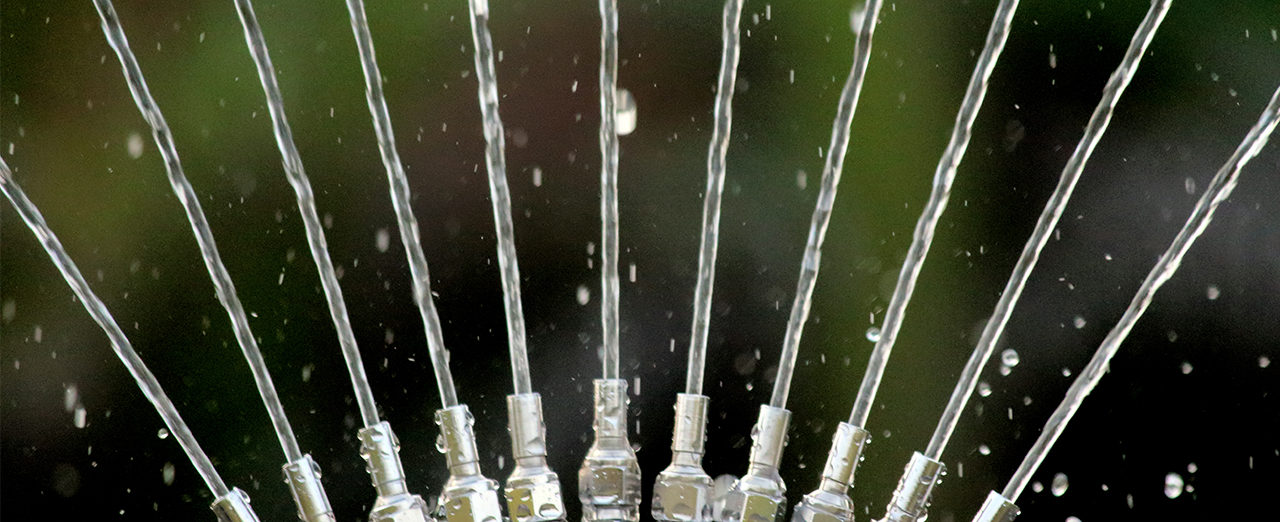

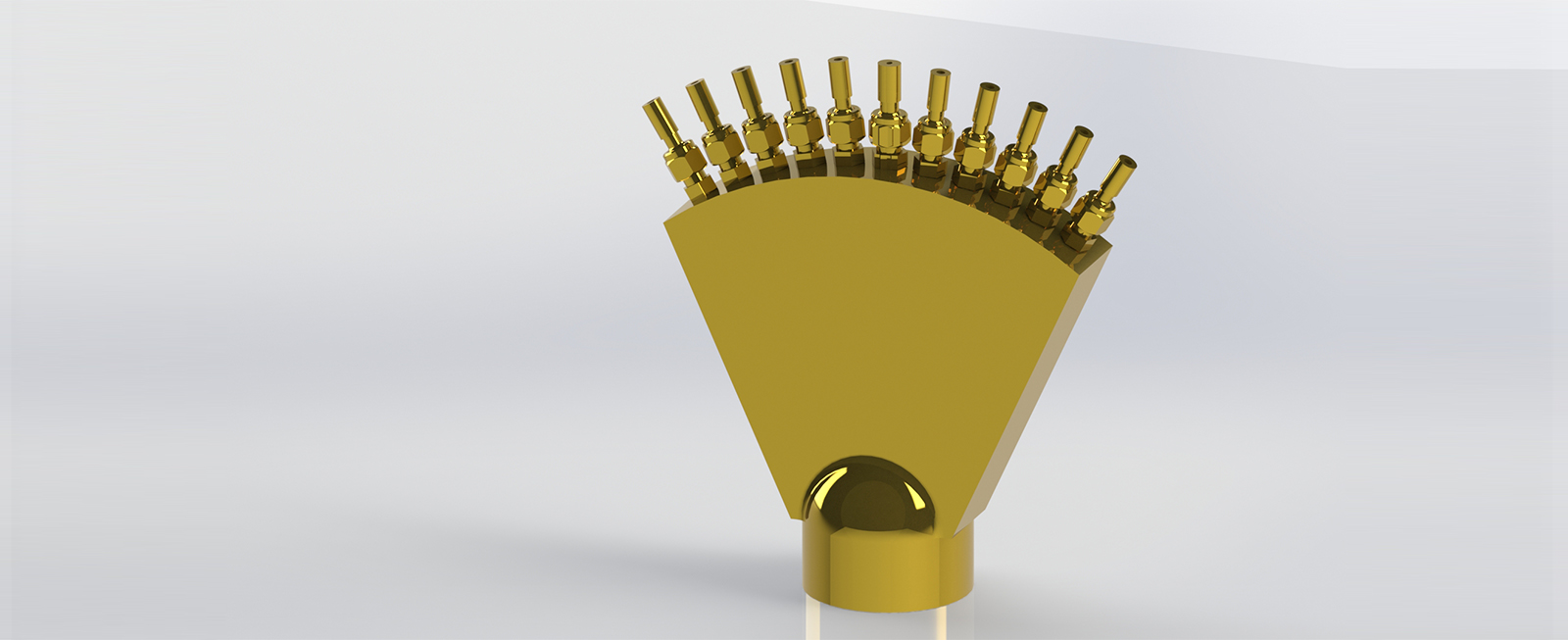

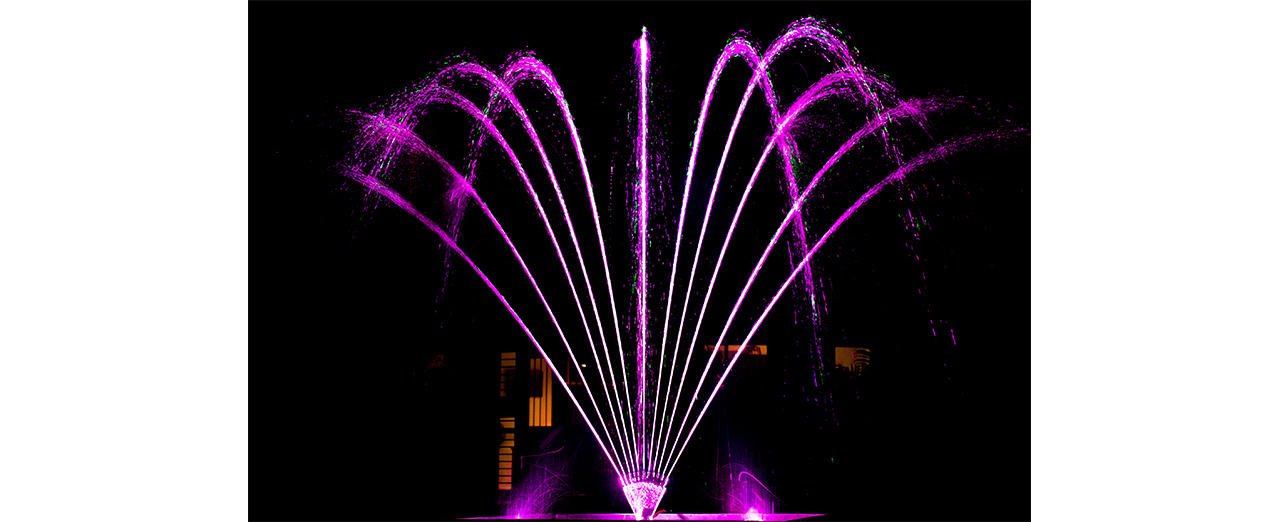

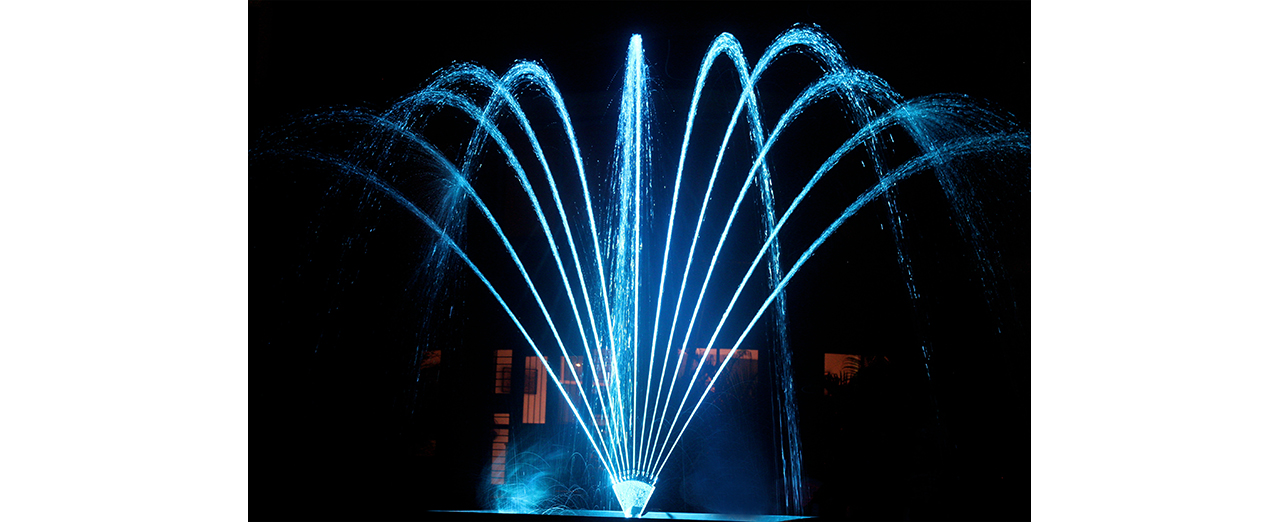

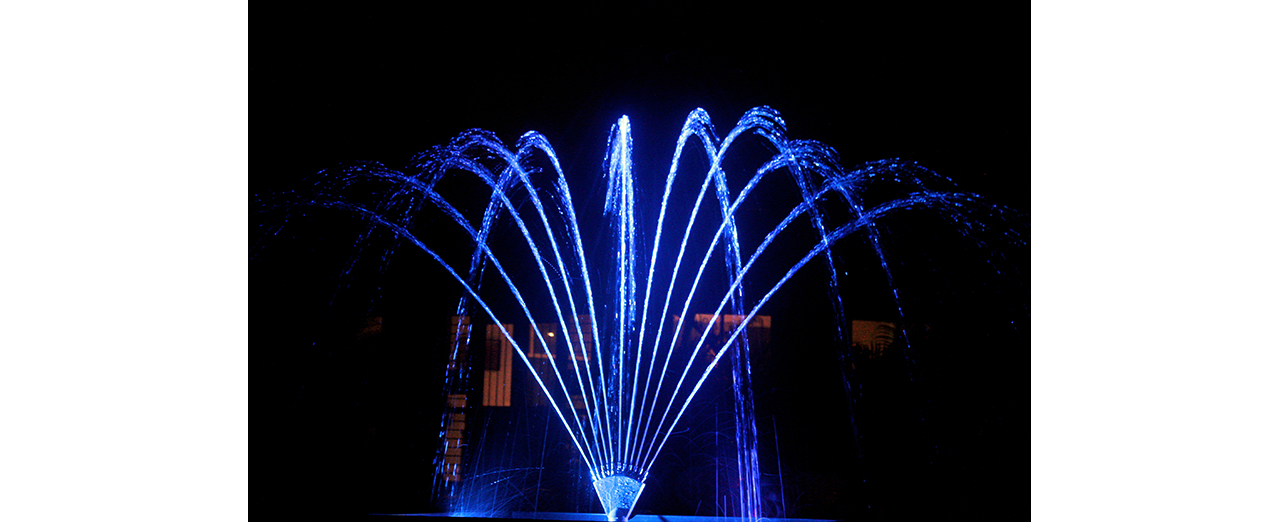

Finger jets as the name suggests are nozzles with finely shaped finger tips prodding from the base. They create arc spray patterns that can be used to enhance large water creations or use as standalone in indoor or shielded outdoor environment. The clear precise jets create exquisite spray patterns in throwing arc pattern. They produce minimum splash or noise and a delight to watch from all angles. They can be customized to be 6 or 12 nozzles in single or multiline patterns. They complement water sprays when done in series or create patterns form various arrangements.

Inlet BSP/NPTNo. Of NozzlesNozzle TypeDimension A x B (mm)
1"9Adjustable40 x 130
1.5"11Adjustable64 x 140
Spray Length
1 m2 m3 m4 m5 m
Spread at fall1.5m2.5m3.3m4.2m5m
LPM | head {mtr} 25 I 1.0033 I 1.5045 I 2.50 50 I 3.0055 I 4.00
LPM | head {mtr} 70 l 1.20100 I 2.00156 I 8.00135 I 3.50-

Visibility
5

Wind Resistance
4

Sound level
4-5

Splash
4-5

Areation Quality
5
